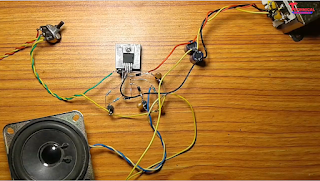

First you want this type TDA2030 ic

How To Wiring TDA2030 Ic.........??

watch this video for better understanding

This things are required to make it............

1.👉 TDA2030A audio ic.................https://amzn.to/2Rq3L4M

2.👉 1 pcs 22uf capacitor..............https://amzn.to/2TkHZg7

3.👉 2pcs 100uf capacitor.................https://amzn.to/2QYnPvp

4.👉 1 pcs 223pf capacitor................https://amzn.to/2RkI0mG

5. 👉 2 pcs IN4007 diode..............https://amzn.to/2TeWQbH

6. 👉 2 pcs 104pf capacitor................https://amzn.to/2RkiCgJ

7. 👉 2 pcs 22k resistor..............https://amzn.to/2SpT4MG

8. 👉 1 pcs 680 ohm resistor..............https://amzn.to/2QSdyRr

9. 👉 1 pcs 1 ohm resistor................https://amzn.to/2SnBBV9

10. 👉 1 pcs 1uf capacitor................https://amzn.to/2TaeQDW

* Then you want a heat sink. Attached the heat sink with this TDA2030 ic, after applying heat sink paste back of that ic.

*This ic have 5 pin.

1 no pin.......Non inverting input.

2 no pin.......Inverting input.

3 no pin.......Negative volt. [-12 volt.]

4 no pin.......Spk out.

5 no pin.......Positive volt. [+12 volt.]

Circuit Diagram.

*watch this circuit diagram and follow my steps for wiring this ic.

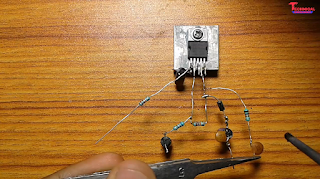

*First connect 1uf capacitor on pin no 1.

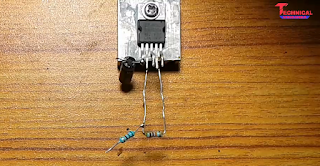

*Then Short 2 no pin with pin no 4 by 22k resistor.

*Then connect 680 ohm resistor on pin no 2.

*Then connect 22uf capacitor with 680 ohm resistor.

*Then connect 22k resistor on pin no 1.

*Then connect IN4001 or IN4007 on pin no 4.

*Then connect 100uf  with 104 pf capacitor [as well as this picture].

*Then connect this 101uf capacitor with diode.

*Then connect 1 ohm resistor with pin no 4.

*Then connect 223pf capacitor with 1 ohm resistor.

*Then connect 100uf  with 104 pf capacitor [as well as this picture]. Then connect this 101uf capacitor with on pin no 5.

*Then  Short pin no 4 with pin no 5 by  IN4001 or IN4007.  [as well as this picture].

*Then connect GND 22k resistor, 22uf capacitor, 101uf capacitor, 223pf capacitor, and ahain 101uf capacitor [connect after watch circuit diagram].

*Ic 1 no pin's 1uf capacitor [-] is audio input. and audio Gnd connect to ic GND.

*Ic 4 no pin is Spk out. and spk [-] pin connect to ic GND.

*Then short ic's 3 no pin to diode [connect after watch circuit diagram]. Then this wire connect to [-12 volt].

*Ic's 5 no pin for [+12 volt]. Then connect [+ 12 volt] this wire to transformer.  [connect after watch circuit diagram].

Thank You
Technical Mriganka.
