How to make balance on stereo amplifier

How to make balance on stereo amplifier

*This things are requared to make this........

1. 100k dual trun potentiometer (you can use here any value of potentiometer)........https://amzn.to/2QTs23n


2. 100k single trun potentiometer (you can use here any value of potentiometer)........https://amzn.to/2VijXno

watch this video for better understanding

*Follow my steps for make it.

*Potentiometer pinout (watch the picture).........

*Left side pin is input.

*Middle side pin is output.

*Right side pin is gnd.

*But when we use potentiometer as balance on stereo amplifier, (watch the picture)

*Left side pin is audio L/R.

*Middle side pin is gnd.

*Right side pin is audio L/R.

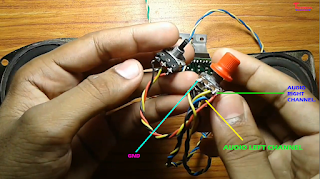

*Then connect this single turn potentiometer with stereo amplifier dual gang/turn potentiometer as well as the picture.

*Dual gang potentiometer's (watch the picture) right side 2 pin is audio input (as single turn potentiometer).

*Then connect the single trun potentiometer's left side pin with dual gang potentiometer's left channel audio input, right side pin with dual gang potentiometer's right channel audio input, and single
trun potentiometer's gnd connect with dual gang potentiometer's gnd.

*Now your balance potentiometer is ready, check it.

Thank you,

Technical Mriganka...........
