How to make MIC CIRCUIT

How to make MIC CIRCUIT

This things are required to make it............

1.👉 one pcs bc548b transistor.............https://amzn.to/2H4NqhL
                           OR
      *👉 bc547b transistor...........https://amzn.to/2H5rR0y

2.👉 2 pcs 104j capacitor............https://amzn.to/2TEh4M3

3.👉 one pcs 100uf 16-25 volt capacitor.........https://amzn.to/2GYW9C2

4.👉 2 pcs 10k resistor...........https://amzn.to/2TBWqMD

5.👉 one pcs 100k resistor..............https://amzn.to/2CaUnbf

6.👉 Mic......https://amzn.to/2C81P7a

Watch This Video For Better Understanding

circuit diagram

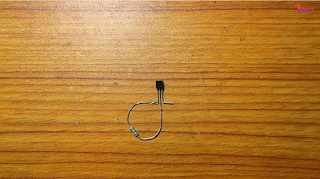

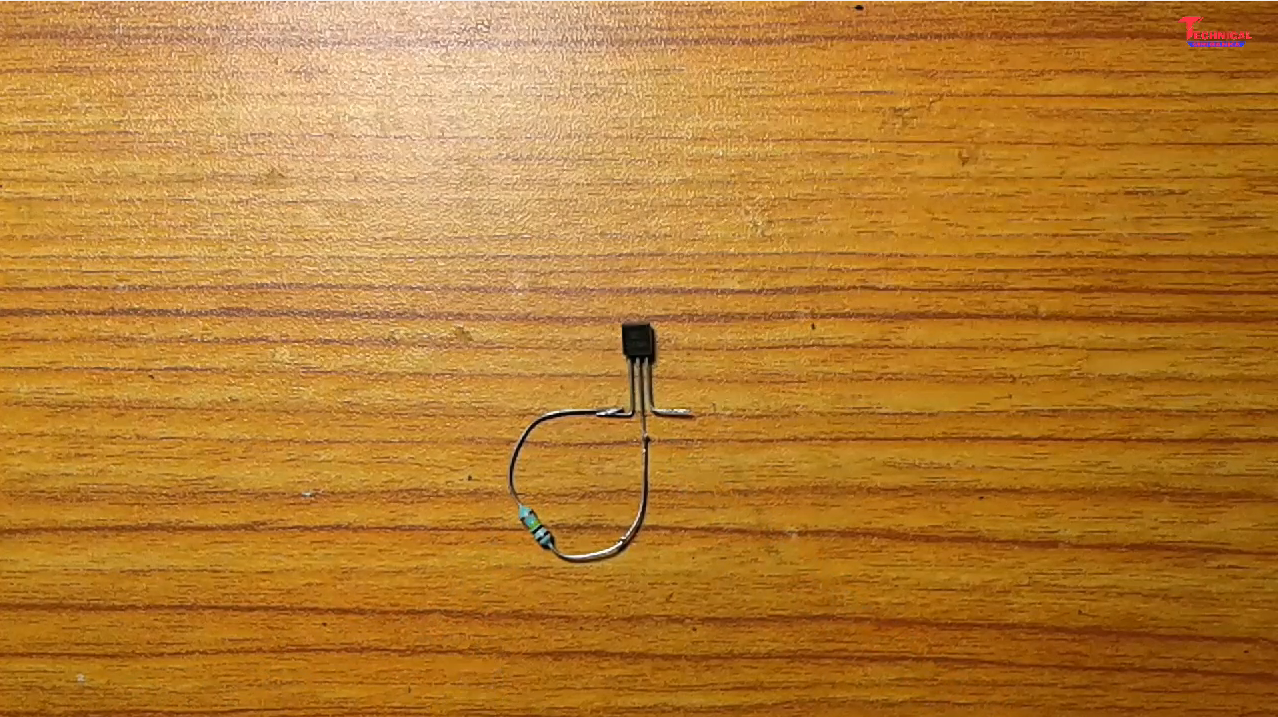

*First you want 1pcs NPN transistor [BC547/BC548]

*Then you want 1 pcs 100k resistor.

*Then short collector to base by this 100k resistor.

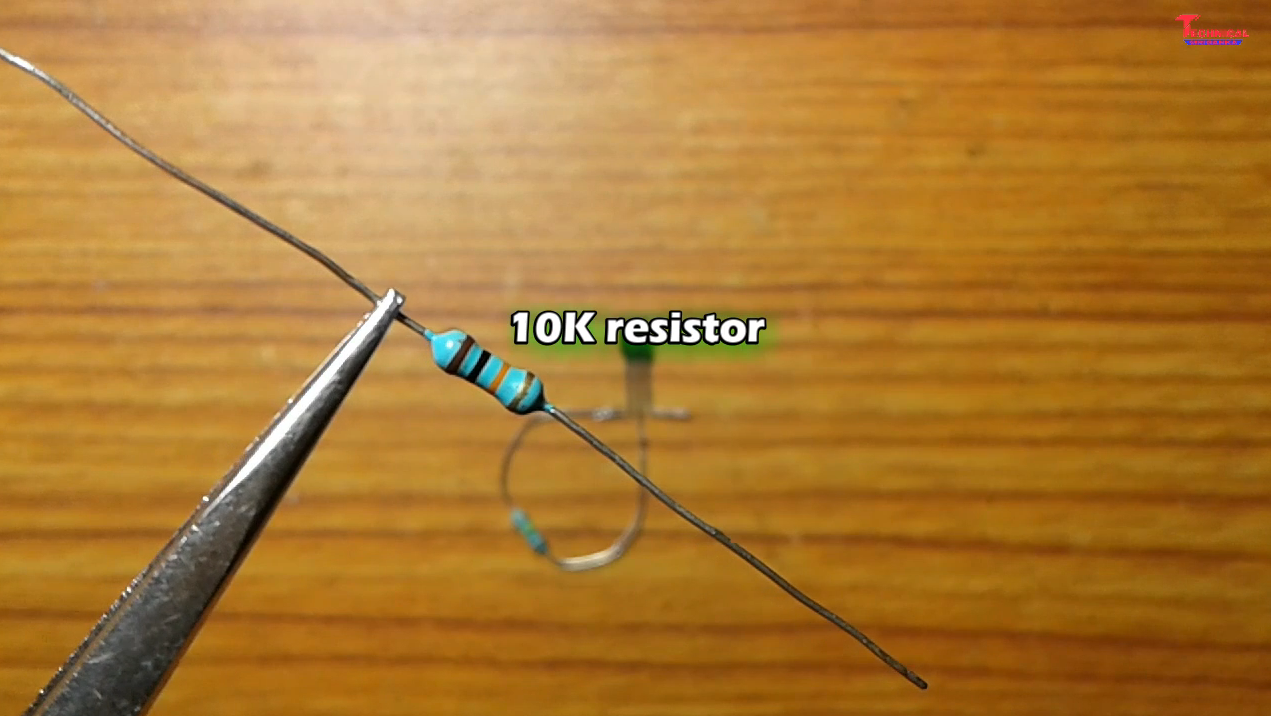

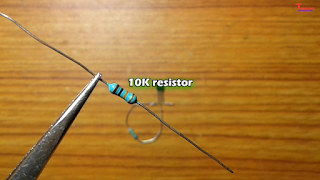

* Then you want 10k resistor

*Then connect this 10k resistor on transistor collector.

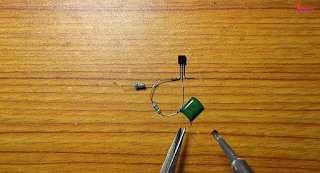

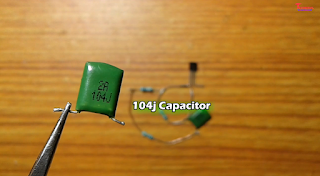

*Then you want 104j capacitor.

*Then connect this 104j capacitor on transistor base.

*Then you want 10k resistor.

*Then short 10k resistor to 104j capacitor by this 10k resistor. [connect after watch circuit diagram].

*Then you want 104j capacitor.

*Then connect this 104j capacitor on transistor collector.

*Then you want 100uf capacitor.

*Then connect 100uf capacitor [+] on 10k resistor. And capacitor [-] connect on transistor emitter. [connect after watch circuit diagram].

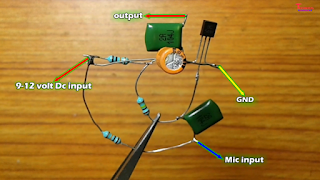

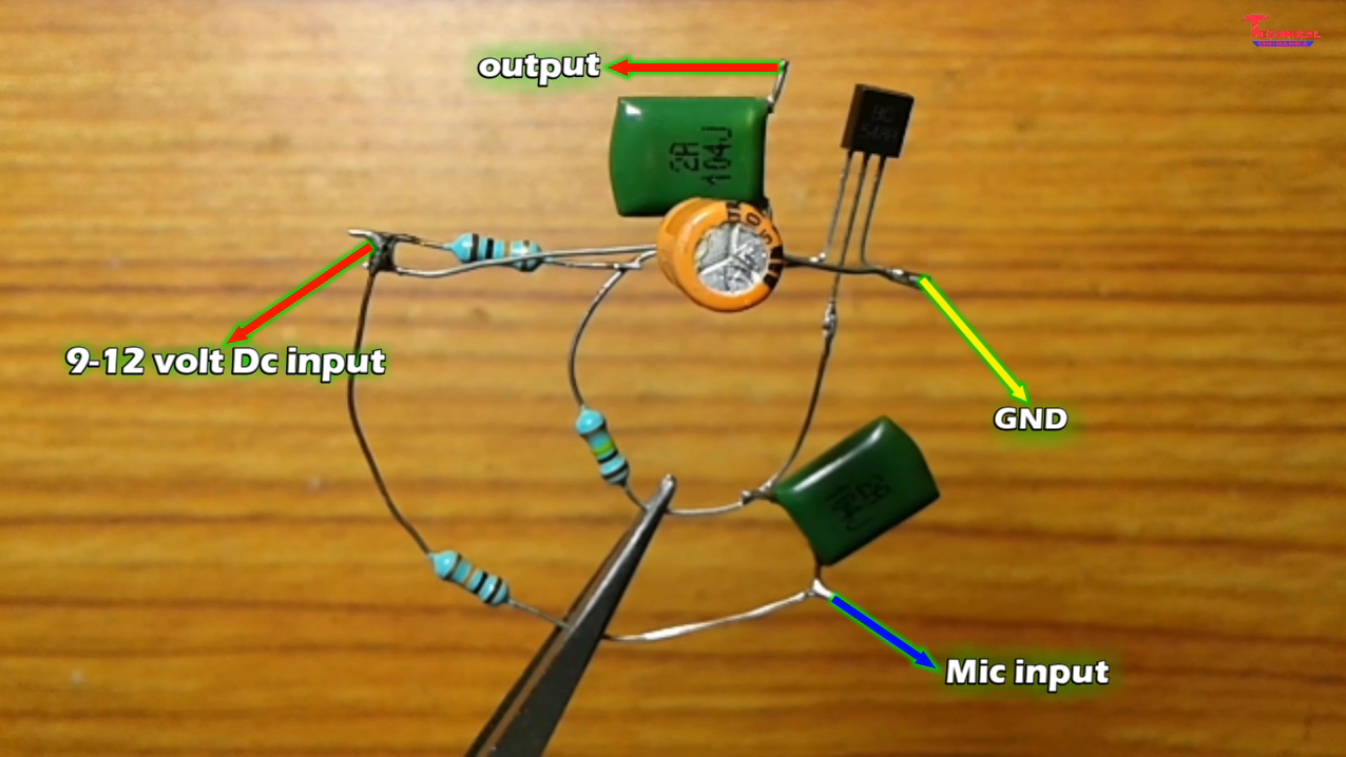

*Then where 10k resistor and 104j capacitor connected, there is MIC input.

*Where 2pcs 10k resistor connected, there is VOLTAGE input. [9-12 volt DC]

*Where 1pcs 104j capacitor connected, there is AUDIO output.

*And transistor emitter is GND.
