Components
1. 6×22KΩ resistor 1/4W.
2. 6×10KΩ resistor 1/4W.
3. 3×680Ω resistor 1/4W.
4. 1×100KΩ resistor 1/4W.
5. 1×4.7KΩ resistor 1/4W.
6. 1×330KΩ resistor 1/4W.
7. 1×1Ω-2.2Ω resistor 1/2W.
8. 6×Diode 1N4007.
9. 5×0.1uF(104) capacitor 50V.
10. 3×0.22uF(224) capacitor 50V.
11. 4×Diode 1N5408.
12. 1×4558D/ NE5532/ TL072 IC.
13. 3×1uF capacitor 50V.
14. 3×22uF capacitor 25V.
15. 3×47uF capacitor 25V.
16. 1×Preset 20k.
17. 1×0.047uF(473) capacitor 50V.
18. 2×0.47uF(474) capacitor 50V.
19. 2×2 pin connecter base 2.54 mm.
20. 1×3 pin connecter base 2.54 mm.
21. 2×5 pin connecter base 2.54 mm.
22. 1×3 pin Screw Terminal.
23. 1×L7805 +V Regulator.
24. 3×TDA2030A IC.
25. 2×4700uF capacitor 25V.
2. 6×10KΩ resistor 1/4W.
3. 3×680Ω resistor 1/4W.
4. 1×100KΩ resistor 1/4W.
5. 1×4.7KΩ resistor 1/4W.
6. 1×330KΩ resistor 1/4W.
7. 1×1Ω-2.2Ω resistor 1/2W.
8. 6×Diode 1N4007.
9. 5×0.1uF(104) capacitor 50V.
10. 3×0.22uF(224) capacitor 50V.
11. 4×Diode 1N5408.
12. 1×4558D/ NE5532/ TL072 IC.
13. 3×1uF capacitor 50V.
14. 3×22uF capacitor 25V.
15. 3×47uF capacitor 25V.
16. 1×Preset 20k.
17. 1×0.047uF(473) capacitor 50V.
18. 2×0.47uF(474) capacitor 50V.
19. 2×2 pin connecter base 2.54 mm.
20. 1×3 pin connecter base 2.54 mm.
21. 2×5 pin connecter base 2.54 mm.
22. 1×3 pin Screw Terminal.
23. 1×L7805 +V Regulator.
24. 3×TDA2030A IC.
25. 2×4700uF capacitor 25V.
License:- ©Technical Mriganka. You can't use this PCB Layout and Gerber File for commercial purpose. You can use this PCB layout and Gerber file only for Educational and DIY projects.
Lets Build This Amplifier
Hello Friends, In this post I make 2.1 amplifier, which can deliver up to 20 watt output for subwoofer and 15+15 Watt for output speakers at 4Ω. For this amplifier I use TDA2030A IC. For designing my PCB, I used EasyEda online software. Then I export the Gerber file (which you can download). And then I go to www.pcbway.com for manufacturing my PCB. PCBWay are the largest PCB manufacturer in China. They offer Standard PCB, Advanced PCB, Rigid-Flex PCB, SMD-Stencil and PCB Assembly Service. Here you get, 100x100mm 2 Layer PCB only at $5, And processing time within 24 hour. And they distribute, worldwide. The more you order, the less price you have to pay.
You just need to upload the Gerber File, and select the quantity, color, silkscreen, thickness etc. Then select your country, and shipping method and then Pay. PCBWay will deliver your PCB within 7-10 days.

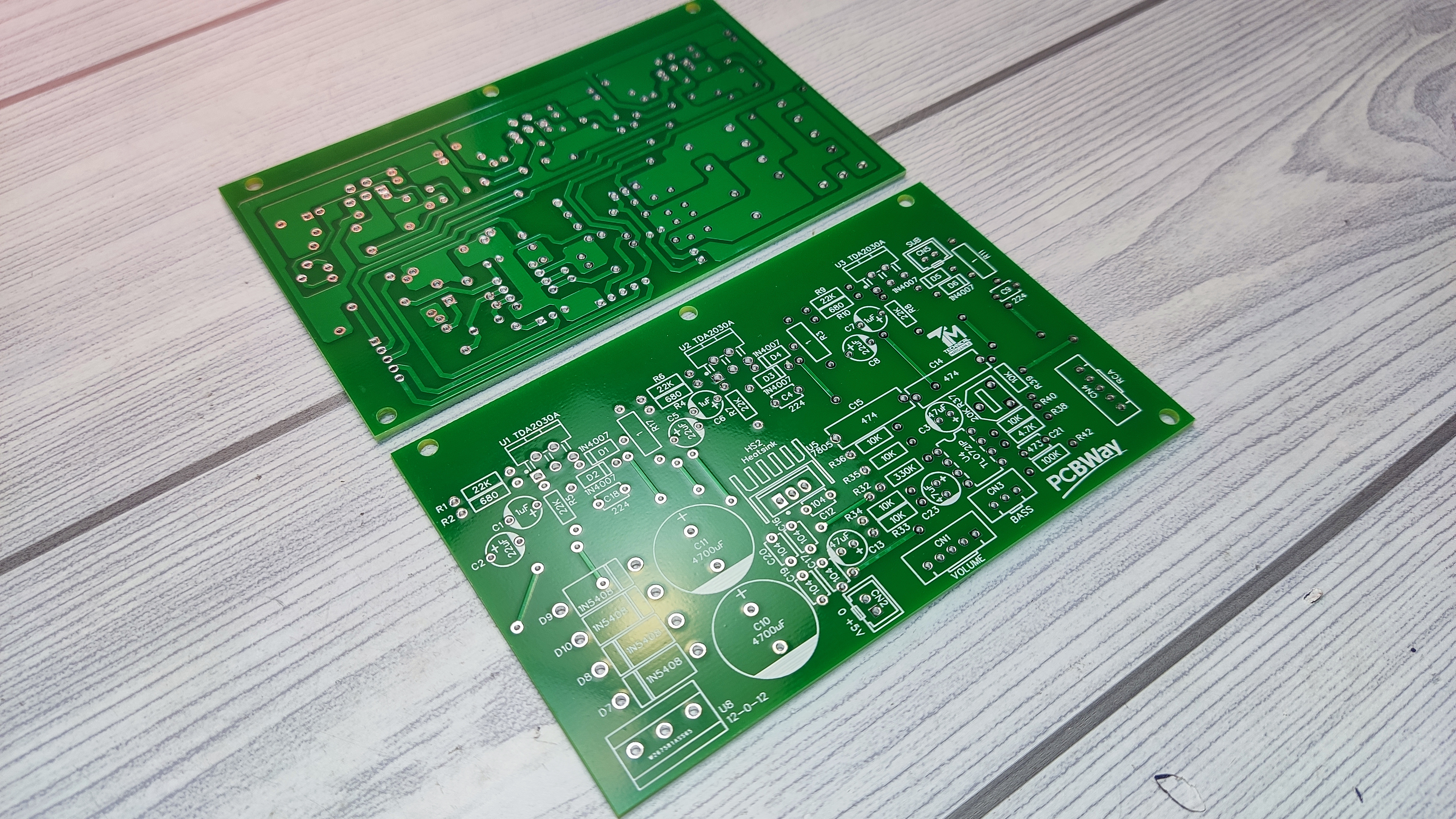

After 7 days I have received my PCB. You can see the PCB quality, it's awesome. I have ordered Green PCB. But you can choose your PCB color. PCBWay provide total 9 color solder mask - Green, Blue, Red, Purple, Black, White, Yellow, Matte Black and Matte Green. On PCBWay you can get 100x100mm 2 Layer PCB only at $5. Maximum size PCB you can get 500x1100mm. And maximum Layer is up to 14 Layers. And If you order PCB first time at PCBWay, then you get a $5 discount coupon. So upload your Gerber today and get best quality PCB.
Testing Method After Complete This Amplifier
Check Voltages:- Check Audio Output and Audio Input voltage. Here you get no voltages 0.00V. If you get same voltages, then connect preamplifier to input and connect speaker to output.
Power Supply:- For get best performance of this amplifier, you use 12-0-12V 3A-4A Transformer (Don't increase voltage).
