Components
1. 3×56KΩ resistor 1/4W.
2. 2×1.5KΩ resistor 1/4W.
3. 1×30KΩ resistor 1/4W.
4. 1×3.3KΩ resistor 1/4W.
5. 1×1Ω resistor 1/4W.
6. 2×Diode 1N4007.
7. 4×Capacitor 0.22uF(224).
8. 1×Capacitor 0.1uF(104).
9. 1×47uF capacitor 25V.
10. 1×10uF capacitor 25V.
11. 4×Diode 1N5408.
12. 1×2 pin connector base 2.54 mm.
13. 1×Transistor TIP41C.
14. 1×Transistor TIP42C.
15. 1×IC TDA2030A.
16. 2×2 Pin screw terminal.
17. 1×2200uF capacitor 25V.
18. 1×4700uF capacitor 25V.
2. 2×1.5KΩ resistor 1/4W.
3. 1×30KΩ resistor 1/4W.
4. 1×3.3KΩ resistor 1/4W.
5. 1×1Ω resistor 1/4W.
6. 2×Diode 1N4007.
7. 4×Capacitor 0.22uF(224).
8. 1×Capacitor 0.1uF(104).
9. 1×47uF capacitor 25V.
10. 1×10uF capacitor 25V.
11. 4×Diode 1N5408.
12. 1×2 pin connector base 2.54 mm.
13. 1×Transistor TIP41C.
14. 1×Transistor TIP42C.
15. 1×IC TDA2030A.
16. 2×2 Pin screw terminal.
17. 1×2200uF capacitor 25V.
18. 1×4700uF capacitor 25V.
License:- ©Technical Mriganka. You can't use this PCB Layout and Gerber File for commercial purpose. You can use this PCB layout and Gerber file only for Educational and DIY projects.
Lets Build This Amplifier
Hello Friends, in this post I make a 50 Watt mono amplifier. This is a class AB Mono amplifier. Which can deliver up to 50 Watt RMS output at 4Ω +16V, Test frequency 1khz. For this amplifier I used TIP41C & TIP42C Transistor and TDA2030A IC. For designing my PCB, I used EasyEda online software. Then I export the Gerber file (which you can download). And then I go to www.pcbway.com for manufacturing my PCB. PCBWay are the largest PCB manufacturer in China. They offer Standard PCB, Advanced PCB, Rigid-Flex PCB, SMD-Stencil and PCB Assembly Service. Here you get, 100x100mm 2 Layer PCB only at $5, And processing time within 24 hour. And they distribute, worldwide. The more you order, the less price you have to pay.

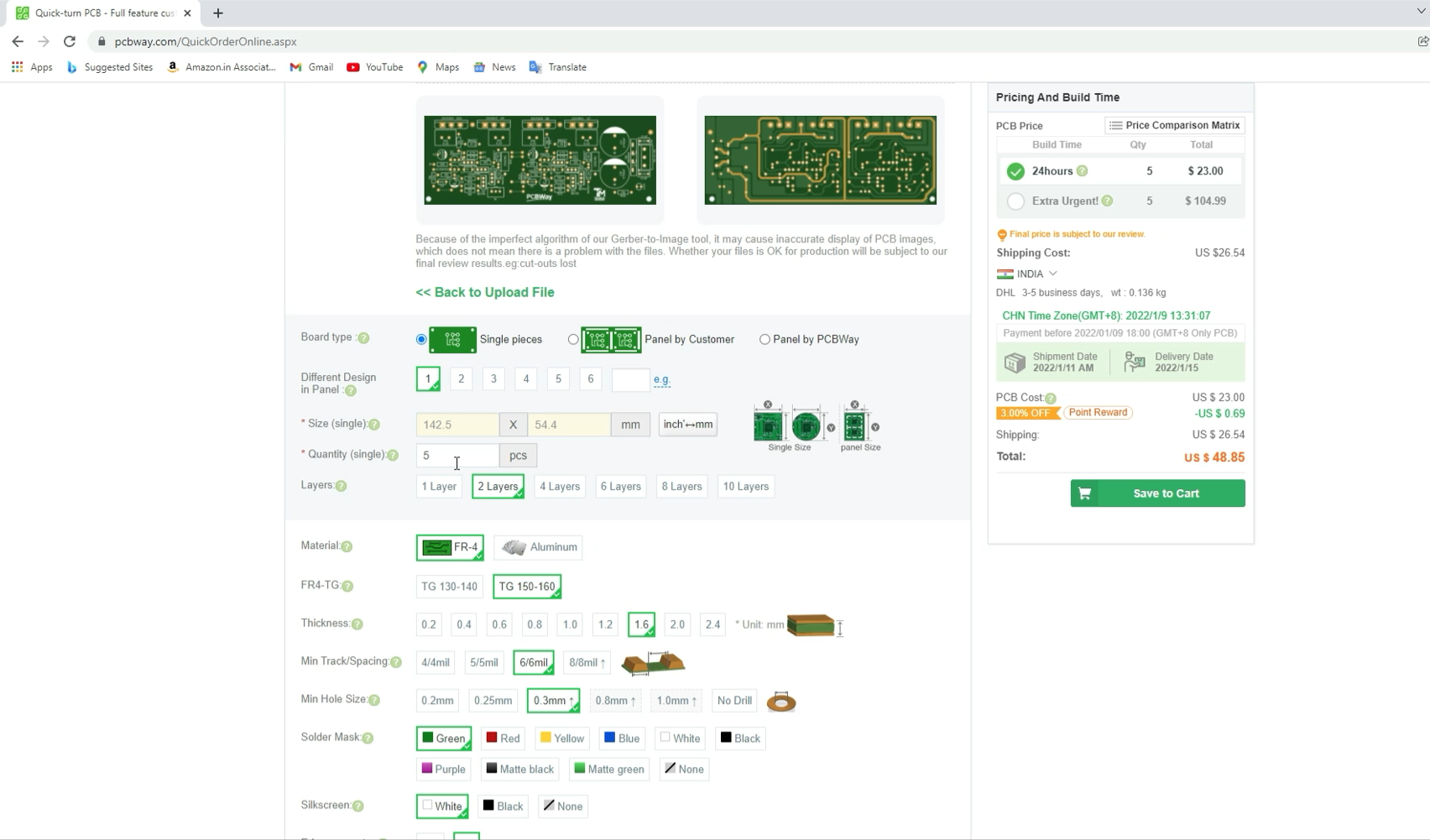

You just need to upload the Gerber File, and select the quantity, color, silkscreen, thickness etc. Then select your country, and shipping method and then Pay. PCBWay will deliver your PCB within 7-10 days.
After one week I have received my PCB. You can see the PCB quality, it's awesome. I have ordered White PCB. But you can choose your PCB color. PCBWay provide total 9 color solder mask - Green, Blue, Red, Purple, Black, White, Yellow, Matte Black and Matte Green. On PCBWay you can get 100x100mm 2 Layer PCB only at $5. Maximum size PCB you can get 500x1100mm. And maximum Layer is up to 14 Layers. And If you order PCB first time at PCBWay, then you get a $5 discount coupon. So upload your Gerber today and get best quality PCB.
Testing Method After Complete This Amplifier
Series light test:- After complete this board don't forget to series light test. When you will on this amplifier via series light, it glow for some time (1 - 2 sec). Then series light will turned off fully. If the series light will fully turned off, then check the voltages.
Check Voltages:- Check Speaker Output and Audio Input voltage. Here you get no voltages 0.00V. If you get same voltages, then connect preamplifier to input and connect speaker to output.
Power Supply:- Recommended transformer 0-12V 5A. Or you can use 12V Battery.
Check Voltages:- Check Speaker Output and Audio Input voltage. Here you get no voltages 0.00V. If you get same voltages, then connect preamplifier to input and connect speaker to output.
Power Supply:- Recommended transformer 0-12V 5A. Or you can use 12V Battery.
