How to make 6 volt battery charger

How to make 6 volt battery charger

This things are required to make it............

1.👉 0-9 volt transformer............https://amzn.to/2BH0wfo

2.👉 6 VOLT battery..........https://amzn.to/2T2ImeS

-------------------------------------------------------------
                        [Bridge rectifier]

*👉 For 5 Amp transformer............

     1.👉 4 pcs SR5100.........https://amzn.to/2Rk2Ena

     2.👉 1 pcs 4700uf 16-25 volt capacitor..........https://amzn.to/2Abnv24

*👉 For 2-3 Amp transformer............

     1.👉 4 pcs IN5408 diode..........https://amzn.to/2V84fLy

     2.👉 1 pcs 3330uf 16-25 volt  capacitor...........https://amzn.to/2AeIPnf

*👉 For 500mA -1 Amp transformer..........

     1.👉 4 pcs IN4007 diode........https://amzn.to/2RandCk

     2.👉 1 pcs 2220uf 16-25 volt capacitor..........https://amzn.to/2RebB0V

How To Make It.............??

Watch this video for better understanding.

Circuit Diagram

*Watch this circuit diagram and follow my steps for make it.

*I am using here 1 ampere transformer but you can use this bridge rectifier wiring any ampere transformer. [Must change diode and capacitor when increase ampere on transformer]

*Watch this picture about diode [+] and [-]. The black portion of diode is positive and white portion of  diode is negative.

*Then you want 4 pcs IN4007 diode (for 1 ampere transformer. must change diode when increase ampere on transformer).

*Hold diodes on the one hand of [+].

* Then hold diodes as well as this picture. 2 diodes[+] on the one hand and  2 diodes[-] on the one hand. [connect after watch circuit the diagram].

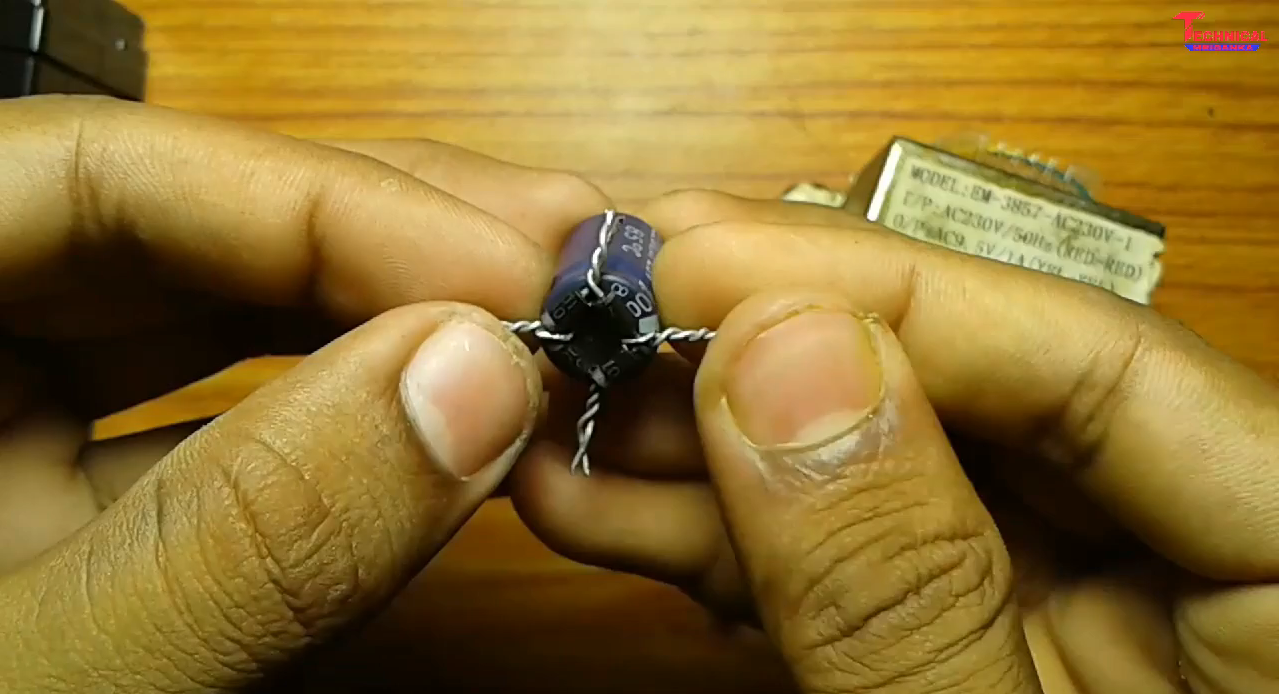

*Then joint pin of diodes as well as this picture.

*watch the picture.

*Where 2 diodes [+] connected there output of DC 9 volt [-].

*Where 2 diodes [-] connected there output of DC 9 volt [+].

*And where 1 diode [+] and where 1 diode [-] connected there input ac 9 volt.

*Then you want 1 pcs 2200uf capacitor. (for 1 ampere transformer. must change capacitor when increase ampere on transformer).

*Watch this picture about capacitor [+] and [-]. The blue portion of capacitor is positive and white portion of capacitor is negative.

*Then connect capacitor [+] where 2 diodes [-] connected. And connect capacitor [-] where 2 diodes [+] connected. [connect after watch circuit the diagram].

*Then you want 3mm LED. connect 680E resistor with LED's [+] pin.

*Then connect LED's [-] pin, where capacitor [-] is connected. And connect LED's [(+) 680E] pin, where capacitor [+] is connected.

*Then apply some soldering paste on diode and capacitor pin,

*Then solder pin of  diodes and capacitor carefully.

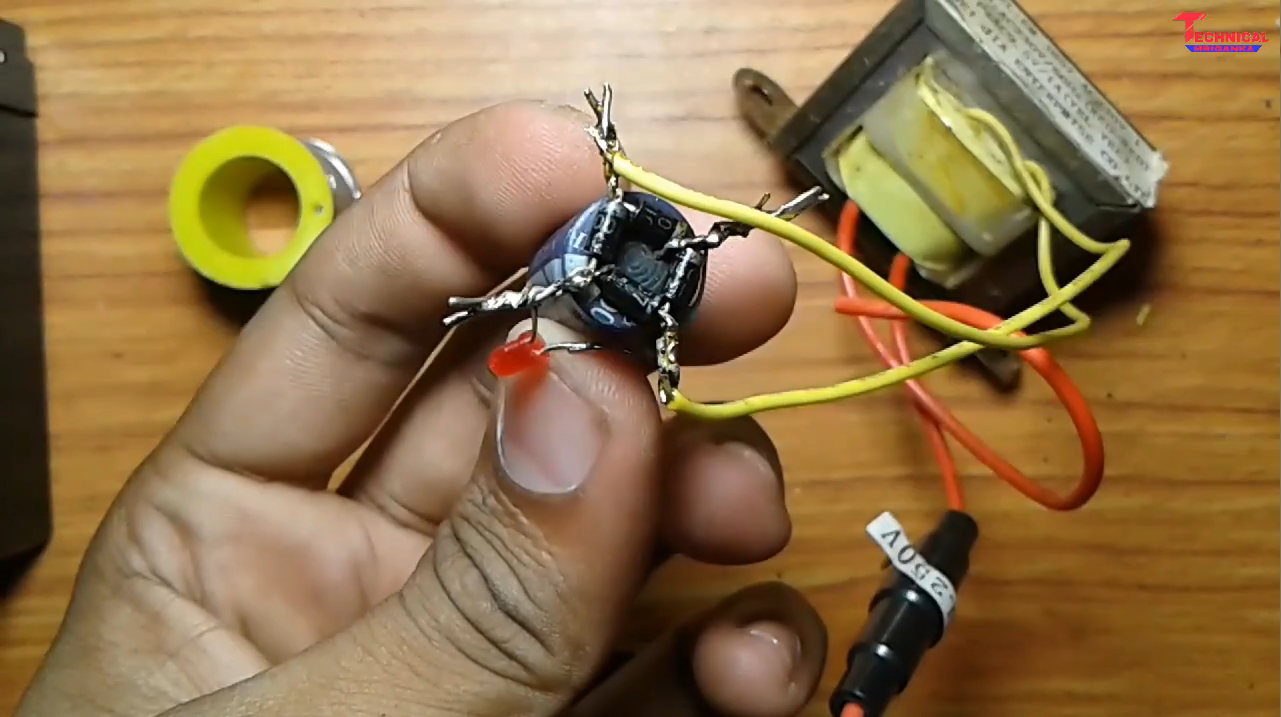

*Then connect 9 volt transformer ac 9 volt output wire, where 1 diode [+] and where 1 diode [-] connected.
 [connect after watch circuit the diagram].

*Then connect wire on rectifier dc output. Connect [+] wire where 2 diodes [-] connected, and connect [-] wire where 2 diodes [+] connected. [connect after watch circuit the diagram].

*Then connect rectifier dc output [-] 9 volt wire with 6 volt battery [-]. And connect [+] 9 volt wire with IN4007 diode. [connect diode + to - ]

*Then the diode connect to 6 volt battery [+]. [connect after watch circuit the diagram].

*Then connect ac 220 volt wire of transformer to your home ac 220-230 volt power supply.

*Now your 6 volt battery charger is complete.

Thank you,

Technical Mriganka...........
