How to make simple bass treble circuit

How to make simple bass treble circuit


How to make this circuit........??


This things are required to make it............

1.👉 2 pcs 100k potentiometer............https://amzn.to/2QRN6HK

2.👉 2 pcs 473pf capacitor..........https://amzn.to/2V6czvq

3.👉 2 pcs 332j capacitor...........https://amzn.to/2SfiE6Z

4.👉 2 pcs 470 ohm resistor.............https://amzn.to/2SjGgrf

5.👉 2 pcs 1uf capacitor.............https://amzn.to/2SlEKof

6.👉 1 pcs 4.7k resistor..........https://amzn.to/2SkLHpA


watch this video for better understanding




*watch this circuit diagram and follow my steps for make this circuit.


*Then you want 2 pcs 100k potentiometer.

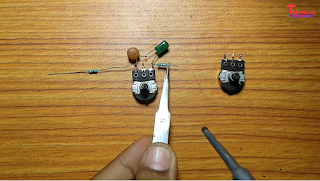

*Then connect 470 ohm resistor on left side pin of left side potentiometer.


*Then connect 473pf capacitor with 470 ohm resistor.

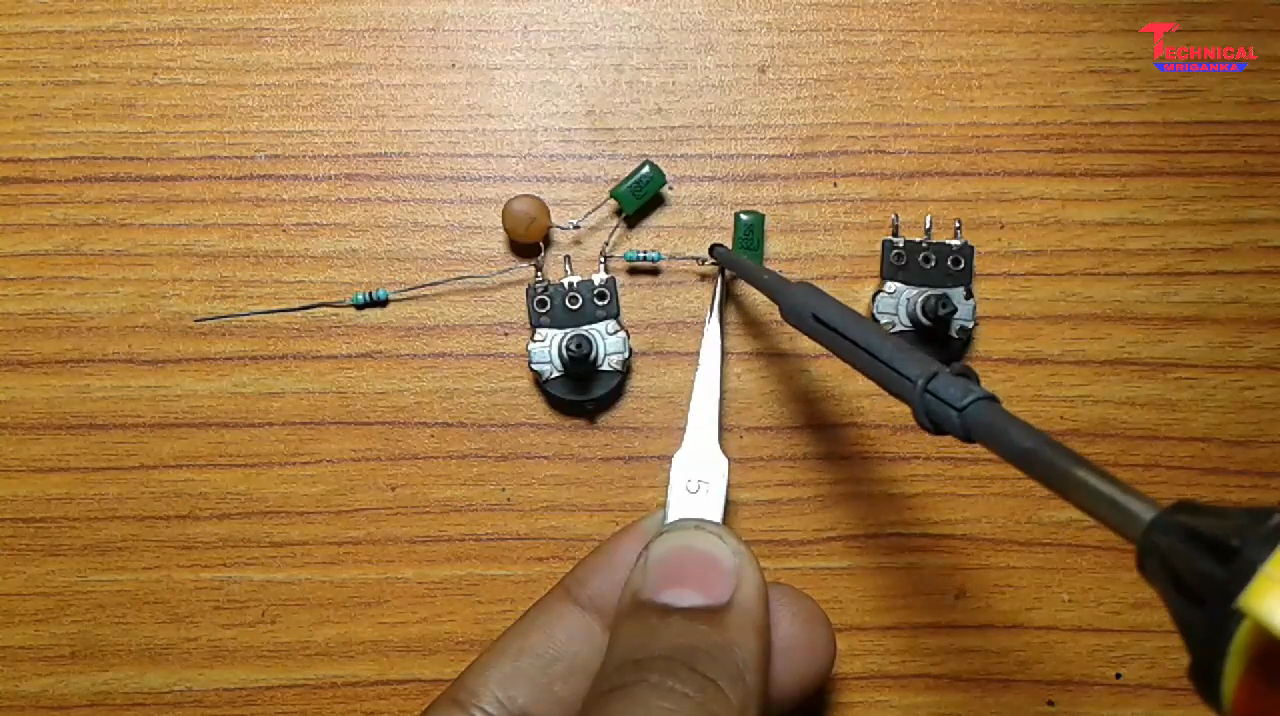

*Then connect 332j capacitor with  473pf capacitor and right side pin of potentiometer. [as well as picture].


*Then connect 470 ohm resistor with right side pin of potentiometer.


*Then connect 332j capacitor with 470 ohm resistor.


*Then connect the 332j capacitor with on left side pin of right side potentiometer.

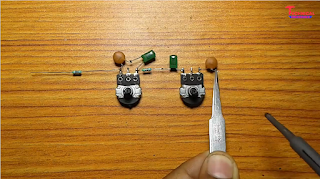

*Then connect 473pf capacitor right side pin. [as well as picture].


*Then connect 4.7k resistor on output pin of 2 pcs potentiometer.


*Then short 470 ohm resistor with 473pf capacitor by wire. [connect after watch circuit diagram]. And here is GND.


*Then connect 1uf capacitor on middle point of 332j capacitor and 470 ohm resistor. [connect after watch circuit diagram]. And here 1uf capacitor [-] pin is audio input.


*Then connect 1uf capacitor on 4.7k resistor. [connect after watch circuit diagram]. And here 1uf capacitor [-] pin is audio output.
