TDA7297 Ic Wiring Details

TDA7297 Ic Wiring Details

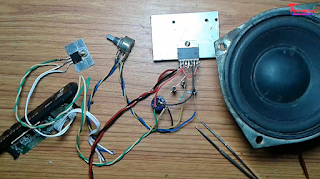

First you want this type TDA7297 ic

How To Wiring Tda7297 Ic.........??

watch this video for better understanding


This things are required to make it............

1.👉 TDA7297 audio ic board.........https://amzn.to/2AePxtr

2.👉 TDA7297 audio ic........https://amzn.to/2TdqwGn

3.👉 2 pcs 0.47uf 25 volt capacitor..........https://amzn.to/2QPHTzW

4.👉 1 pcs 2200uf 25 volt capercitor.......... https://amzn.to/2RebB0V

5.👉 1 pcs 10uf 25 volt capacitor.........https://amzn.to/2RcAzhn

6.👉 2 pcs 47k resistor.........https://amzn.to/2V0x3Wm

7.👉 1 pcs 100k dual gang potentiometer........... https://amzn.to/2Sh7bng

8.👉 Bluetooth panel......... https://amzn.to/2QNsxME



* Then you want a heat sink. Attached the heat sink with this Tda7297 ic, after applying heat sink paste back of that ic.



*Then short this pin of ic....... pin 6 - pin 7 and pin 8 - pin 9 [after watch this picture]

*This ic have 15 pin.

1 no pin........... spk out left [+]

2 no pin........... spk out left [-]

3 no pin........... Vcc

4 no pin........... Audio input left

5 no pin........... N.C.

6 no pin...........Mute

7 no pin........... Stand- By

8 no pin...........PW-GND

9 no pin...........S-GND

10 no pin........... N.C.

11 no pin........... N.C.

12 no pin........... Audio input right.

13 no pin........... Vcc

14 no pin........... spk out right [-]

15 no pin........... spk out right [+]

circuit diagram of TDA7297 ic

* This ic is stereo ic.

* This ic 30 watt ic. Per channel output 15 watt.

How to wiring........??

Watch and follow this circuit diagram for wiring this ic.

* 1 no pin........ connect speaker [+] wire [left channel] . [Connect after watch circuit diagram]

* 2 no pin........ connect speaker [-] wire [left channel]. [Connect  after watch circuit diagram]

* 3 no pin........ short with pin no 13. (for Vcc). [Connect after watch circuit diagram]

* 4 no pin........ connect 0.47uf capacitor. Then input audio second side of capacitor.[Left channel]

* 5 no pin........ for N.C. [you can leave this pin]

* 6 no pin........short with pin no 7. [Connect after watch circuit diagram]

* 7 no pin........after shorting pin 6 with pin 7 connect 2 pcs 47k resistor and 1 pcs 10uf resistor. then 1 pcs 47k resistor and 10uf capacitor connect in GND. and second 47k resistor connect with Vcc(13 no pin). [Connect after watch circuit diagram]

* 8 no pin........connect GND.

* 9 no pin........connect GND.

* 10 no pin........ for N.C. [you can leave this pin]

* 11 no pin........ for N.C. [you can leave this pin]

* 12 no pin........ connect 0.47uf capacitor. Then input audio second side of capacitor.[Right channel]

*13 no pin..........this pin is voltage input pin. so connect 2220uf capacitor on pin no 13 and also connect capacitor [-] with GND.

* 14 no pin........ connect speaker [-] wire [Right channel]. [Connect  after watch circuit diagram]

* 15 no pin........ connect speaker [+] wire [Right channel]. [Connect  after watch circuit diagram]
