60 watt class AB stereo amplifier using TDA2050×2 ic.

60 watt class AB stereo amplifier

Components List:-

1. 2×TDA2050 ic

2. 2×2200uF 35V capacitor

3. 2×22uF 50V capacitor

4. 2×1uF 50V capacitor

5. 2×474pF 50V capacitor

6. 4×22k resistor

7. 2×680Ω resistor

8. 2×2.2Ω resistor

9. 4×1N5408 diode

Watch this video for better understanding

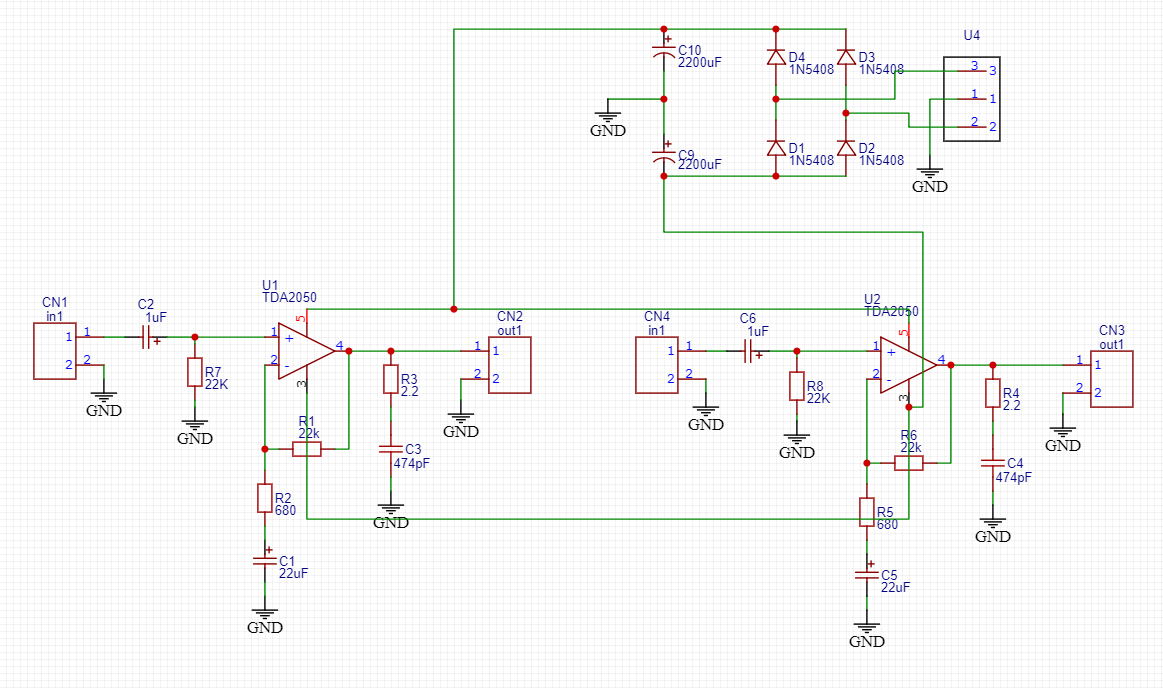

schematic diagram

License► ©Technical Mriganka. You can't use this pcb layout for commercial purpose. You can use this pcb layout only for educational and diy projects.

Pcb Layout:- https://drive.google.com/file/d/10-oYrrxcwdYxCp3yXCP1PaMLQ8rowCRs/view?usp=drivesdk

In this post I make a 60 watt class AB amplifier using TDA2050×2 ic. Which can deliver upto 30 watt per channel. It's frequency range 40hz-20khz. For power supply you can use 18-0-18V 3A transformer. Now follow my steps for this amplifier. First we make pcb. For make pcb you need pcb layout. download the pcb layout and print it by laser printer on photo paper. Then cut the pcb layout. Then press the pcb layout by iron on copper clad board. Press the iron 10-15 munites. Then leave the pcb for cool down 10 munites. when the pcb was cool, put the pcb in water and move the pcb layout to copper clad board. Then put the pcb in ferric chloride [FeCl3+H2O] for etching 10-15 munites. when etching was end, clean the pcb by water. Then make hole on pcb. And then press the upper side print of pcb. Now your pcb is ready mount components by instruction.

Thank you,

Technical Mriganka.
